TZ Range of Traditional
Hanging Brackets & Panels
This is a range of sign brackets made from heavy duty steel which is then zinc and powder coated black. The cross base is laser cut from 8mm plate steel with 3 No. 13mm fixing holes, and the projecting arm is either 25 x 25mm 'antique' hammered mild steel or 40mm x 40mm box steel. This range of sign brackets is supplied with free wall fixings.
The brackets and panels are sold separately.
Fixing clips are included with the panels - not the brackets. The panels are usually made from 19mm white foamed PVC and include the fixing clips. The standard sizes and prices are shown below. However special brackets or panels can be quoted for.
Hanging Sign Panel Choices
To hang from the sign brackets we have a whole selection of sign panels. Simple high density foamed 19mm PVC panels are listed below in all shapes and sizes. We could also make the panel in oak framed aluminium composite, traditionally painted wooden framed sign or 18mm tricoya board with painted letters.
The Sign Panels
Red Vinyl Lettering on White Sign Panel
Panel Colours & Finishing Options

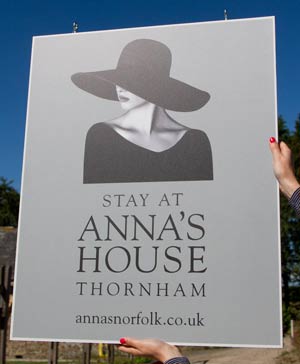

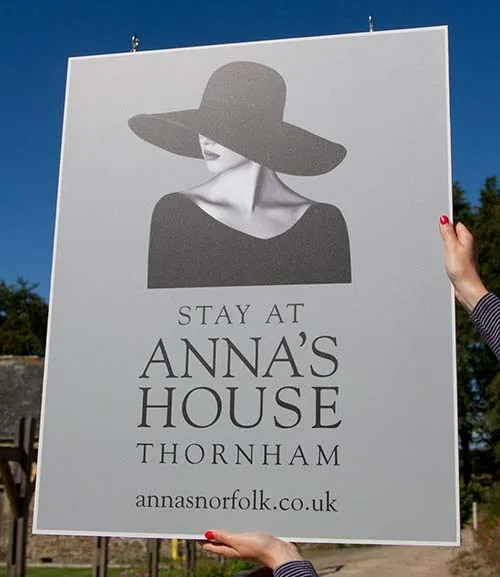

The standard panel colour is white. Panels can be supplied blank, with vinyl lettering, or laminated with full-colour digital print on both sides. All panels include fittings for attaching to the brackets. Sign Panel Prices

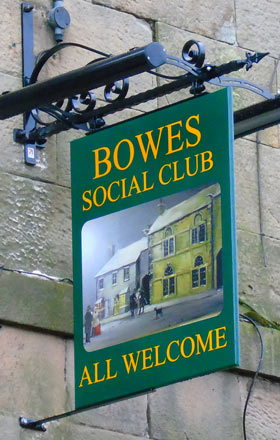

Painted Panels
For a more refined finish, we can paint the panels in your choice of seven standard colours:
-
Black, Farrow & Ball Purbeck Stone (light grey), Moss Green, Farrow & Ball Lichen (light green), Slate Grey, Ultra Marine Blue, Farrow & Ball Stiffkey Blue

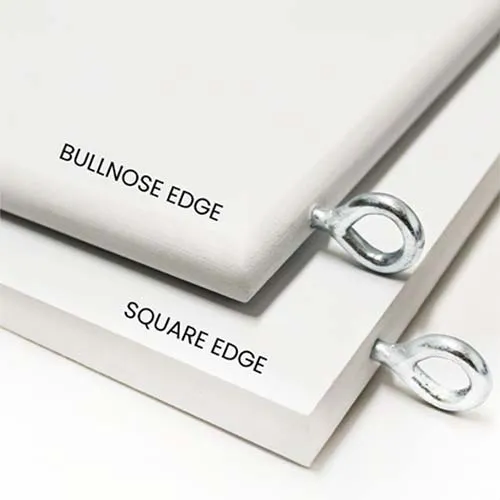

Panel Edge Styles ( Bullnose +£5)
Painting costs £30 + VAT. We can also paint panels in any Farrow & Ball or RAL colour for an additional £20 + VAT. Once painted, we can apply painted lettering to match - unless the panel is being finished in full-colour print. Alternatively, we can apply vinyl lettering or laminated full-colour artwork directly to the painted or standard panel.
The Sign Brackets

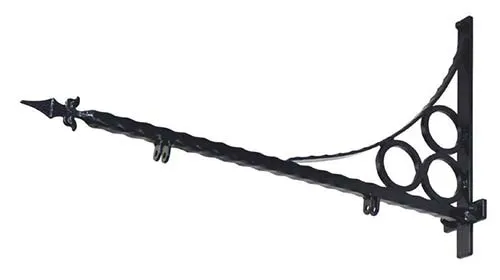

TZJECT 3 - £205
Size:- L 860mm H 500mm W 120mm
Hanging Eye centres:- 410mm
Weight 3kg
Sign Panel Width
Minimum 500mm, Maximum 760mm

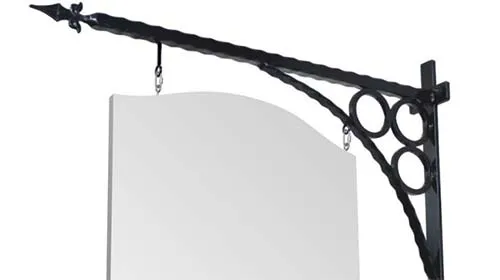

TZJECT 4 - £205
Size:- L 860mm H 500mm W 120mm
Hanging Eye centres:- 410mm
Weight 3kg
Sign Panel Width
Minimum 500mm, Maximum 760mm

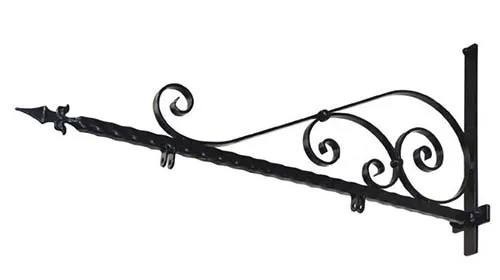

TZJECT 5 - £216
Size:- L 980mm H 500mm W 120mm
Hanging Eye centres:- 410mm
Weight 5.5kg
Sign Panel Width
Minimum 500mm, Maximum 880mm

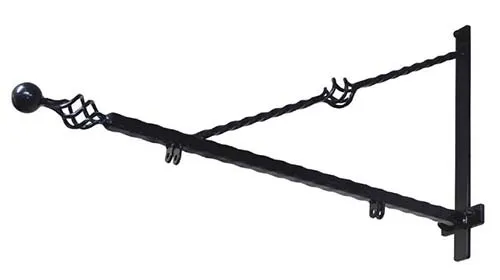

TZJECT 6 - £195
Size:- L 900mm H 500mm W 120mm
Hanging Eye centres:- 410mm
Weight 7kg
Sign Panel Width
Minimum 500mm, Maximum 800mm

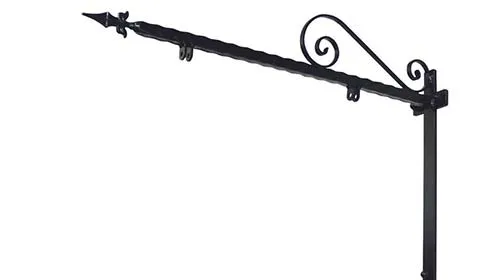

TZJECT 7 - £189
Size:- L 850mm H 500mm W 120mm
Hanging Eye centres:- 410mm
Weight 4.5kg
Sign Panel Width
Minimum 500mm, Maximum 750mm

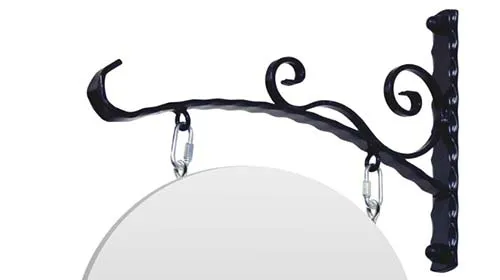

TZJECT 9 Mini- £145
Size:- L 380mm H 210mm W 25mm
Hanging Eye centres:- 235mm
Weight 1.1kg.
Sign Panel Width
Minimum 280mm, Maximum 325mm

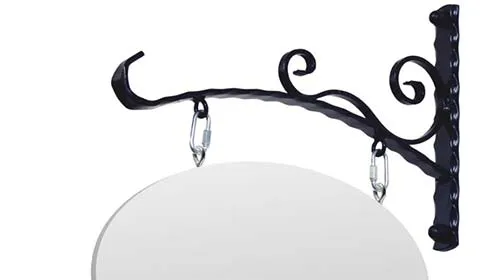

TZJECT 9 - £145
Size:- L 500mm H 300mm W 50mm
Hanging Eye centres:- 250mm
Weight 1.7kg.
Sign Panel Width
Minimum 340mm, Maximum 400mm

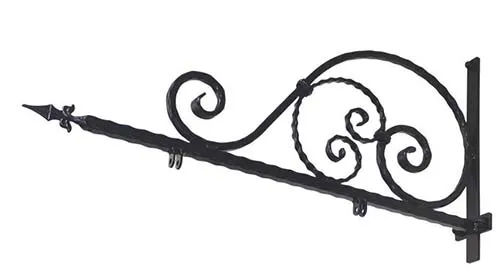

TZJECT 10 - £271
Size:- L 1000mm H 500mm W 120mm
Hanging Eye centres:- 410mm
Weight 7.5kg
Sign Panel Width
Minimum 500mm, Maximum 900mm

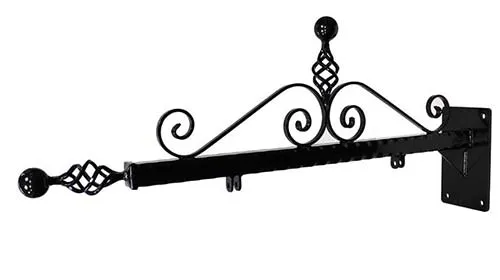

TZJECT 13 - £236
Size:- L 1020mm H 450mm W 150mm
Hanging Eye centres:- 410mm
Weight 7kg
Sign Panel Width
Minimum 500mm, Maximum 700mm

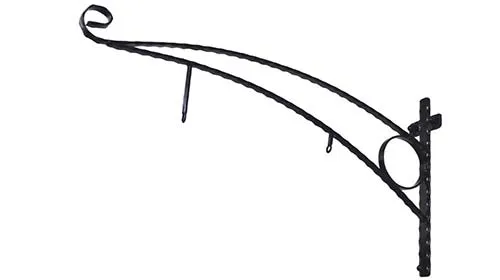

TZJECT 15 - £189
Size:- L 1020mm H 500mm W 120mm Hanging Eye centres:- 410mm
Weight 4.6kg
Sign Panel Width
Minimum 500mm, Maximum 920mm

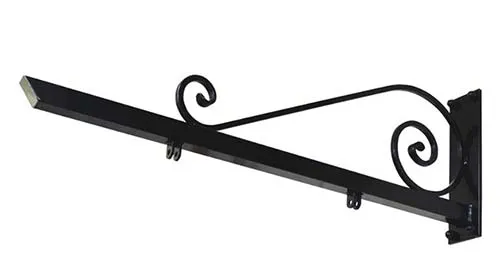

TZJECT 17 - £189
Size:- L 1000mm H 350mm W 100mm Hanging Eye centres:- 410mm
Weight 7kg
Sign Panel Width
Minimum 500mm, Maximum 900mm

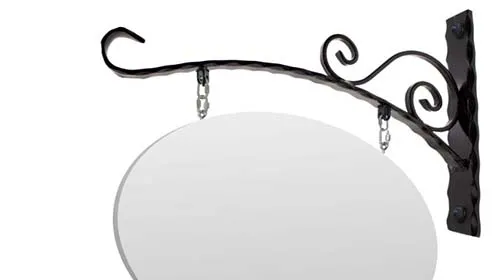

TZJECT 24 - £190
Size:- L 850mm H 500mm W 55mm Hanging Eye centres:- 410mm
Weight 5.2kg
Sign Panel Width
Minimum 500mm, Maximum 750mm
.
